PCX Model Vertical SUV Car Parking Cycle Stereo System

  • >=1 Sets
    $100,000.00
Height (mm):
6500
Width (mm):
5500
Parking lot:
8-16
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Parking Lift
Place of Origin:
Henan, China
Brand Name:
WEIHUA CRANE
Model Number:
PCX
Warranty:
1 Years
Loading Capacity:
1.8t
Product Name:
Car Parking System
Occupy Space:
6.5m*5.5m
Equipment Total Height:
9.7-17.3m
Equipment Total Weight:
153.-33.56t
Car Quantity:
8-16
Motor Power:
7.5-15KW
Cycle Speed:
4.4-5.5m/min
Max Time for Take Out Car:
87-148s
Frame Structure:
Column Square Cube
Control Method:
PLC Control
Supply Ability
Supply Ability:
300 Set/Sets per Year
Packaging & Delivery
Packaging Details
Packaging and shipping details of Car Parking System:
1.Electrical parts are packed by strong plywood box, to prevent the rain soaked.
2.Main portal frame, jib frame and others are packed in plastic woven cloth, to prevent corrosion in seawater.
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated

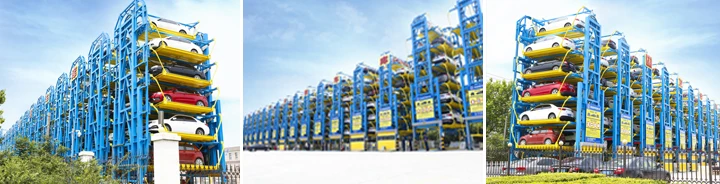

PCX Model Vertical SUV Car Parking Cycle Stereo System

Product Description

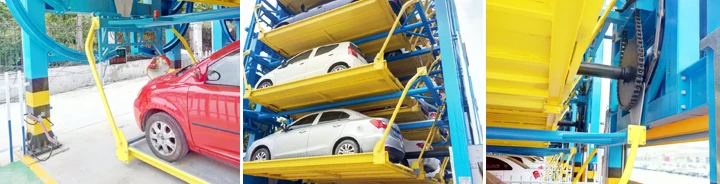

This Car Parking System mainly consists of main steel structure, plate structure, transmission system, control system, and safety protection device. The main structure is internally provided with a fixed guide rail, the lifting chain roller runs in the guide rail, and the carriage plate is suspended on the extended plate of the lifting chain. During operation, the car is parked inside the carriage board, and the chain drive system drives the carriage board for circulation running in the vertical direction. When the carriage board runs to the lowest end, the vehicle can be accessed.

Features and Advantages of Car Parking System:

1. 2 parking spaces for 12 cars, maximized utilization rate of available space;

2. Takes average 70 seconds and up to 120 seconds to park or take your car, the vacancy plate is always at the lowest floor, efficient and convenient;

3. Automatic control, PLC, Frequency Control, less impact to equipment;

4. Use alone or in combination;

5. Simple operation, 4 ways to use it, card, buttons, remote control, mobile phone, App, etc.

6. Safe and reliable, If people approach, the equipment will automatically stop running;

7. Economical, short construction period, less consumption, green, nice appearance;

8. Quick installation and removal;

9. Stable and durable, main PLC and electrical components are from Siemens, Schneider, Omron;

10. Weihua Smart Garage adopts advanced parametric design methods such as 3D CAD and CAE.



Specification

PCX8D-16DH(SUV)Cars Vertical Rotary Parking Equipment Technical Parameters
Item NameTechnical Parameter and Instruction
ModelPCX-8DHPCX-10DHPCX-12DHPCX-14DHPCS-16DH
Car Dimension L*W*H=5300mm*1850mm*2050mm
Car Weight 2.5t2.5t2.5t2.5t2.5t
Occupy Space6.5m*5.5m6.5m*5.5m6.5m*5.5m6.5m*5.5m6.5m*5.5m
Equipment Total Height12.5m15m17.5m20m22.5m
Equipment Total Weight16.8t24.6t33.9t38.8t44t
Car Quantity810121416
Motor Power9.2KW9.2KW15KW15KW18.5KW
Cycle Speed4.4m/min4.4m/min5.5m/min5.5m/min6.5m/min
Max Time for Take Out Car 136s138s146s165s165s
